GUIDE USA | TE421 Thermal Monocular 1.9X 400x300 25mm

GUIDE USA | TE421 Thermal Monocular 1.9X 400x300 25mm

Regular price
Price: $999.00
Regular price
List Price: $1,090.00
Sale price
Price: $999.00
You Save: $91.00 (8%)
10% off and Free Shipping | Coupon Code: ONEFIVE%10 | Ends:
Description

The TE Series Handheld Thermal Imaging Monocular is your compact and reliable night vision solution. Designed with a 400x300 infrared detector and a 25mm lens, it delivers a powerful detection range of up to 1400 yard. Its 0.32'' AMOLED 800×600 ensures clear infrared image viewing without eye strain.

Perfect for extended use, this pocket-sized device offers up to 1 hour of operation with just a quick 10-minute charge. Lightweight, portable, and efficient, the TE Series is the ultimate thermal monocular for outdoor enthusiasts and night hunters.

Introducing the Guide Sensmart Compact Monocular TE —the lightest and most compact thermal monocular on the market.

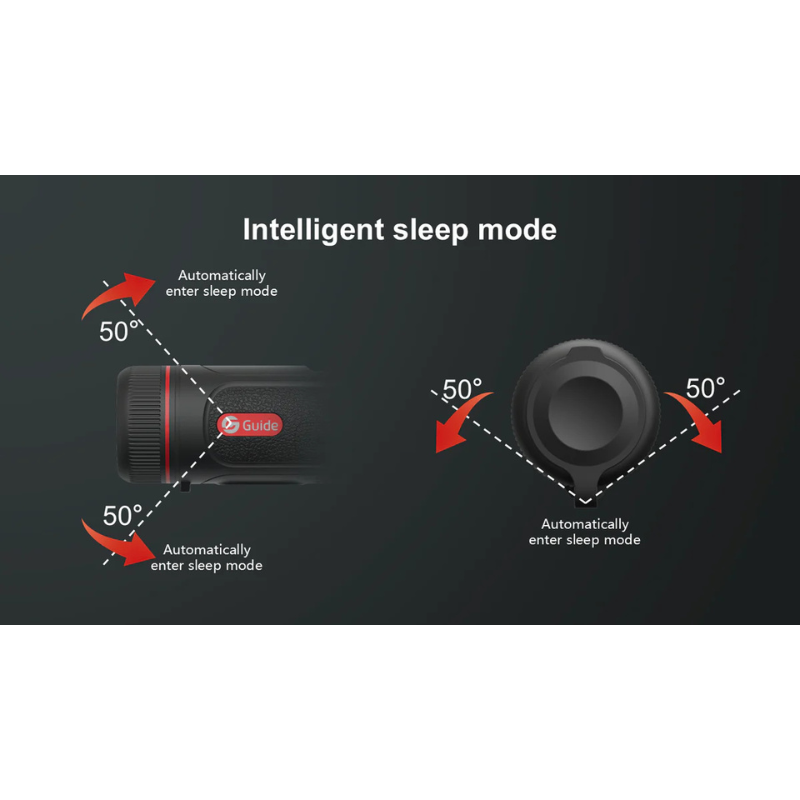

Its compact size allows you to carry it in your pocket or around your neck, it comes with all the features that you can expect, which include: built-in recording and picture capture capabilities, Wi-Fi hotspot, TargetIR app compatibility for storing and sharing images and videos, constant OTA upgrades, IP67 protection rating and 6 hours of battery life. It also features an automatic sleep mode and a quick charge feature.

As always with Guide Sensmart, we are proud to offer a 10-year warranty on your optic and its thermal sensor. We trust our products more than anything else and are the only ones to offer this kind of warranty. With a Texas-based repair center, you can rest assured that you'll get your product back within a week.

SHARP & LIGHTWEIGHT
  • 400×300@12μm Sensor Resolution
  • 1400 yd Detection Range

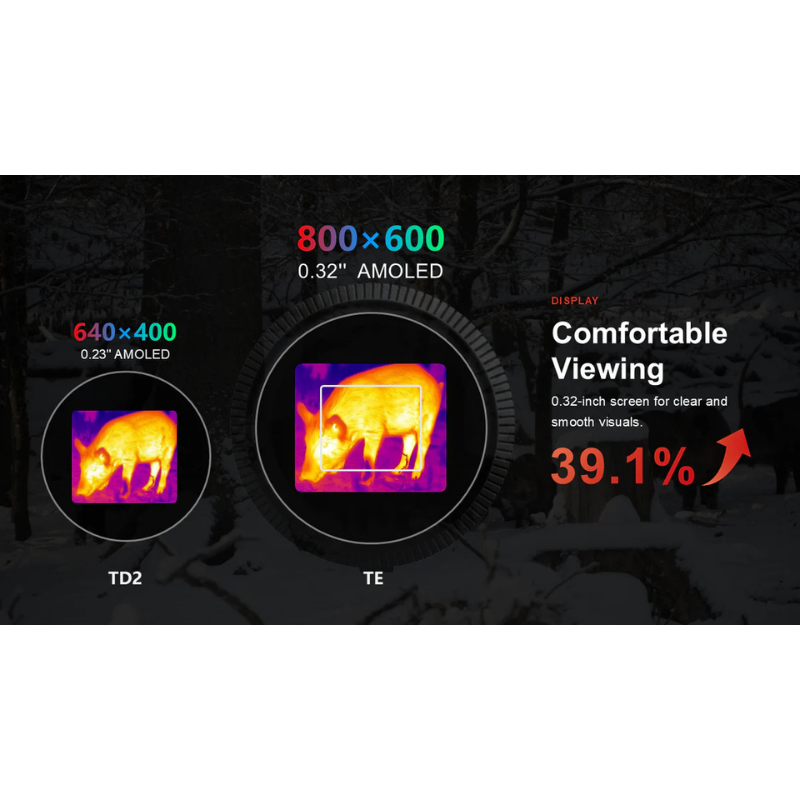

  • 0.32'' AMOLED 800×600 full-color screen

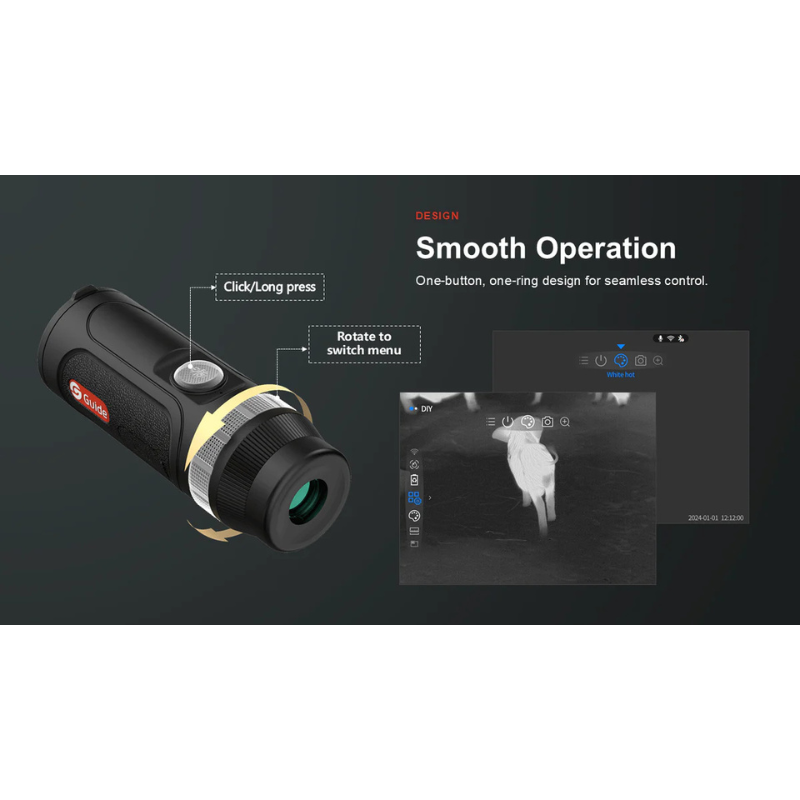

  • One-button control for smooth operation
  • 25mm; F1.0 Focal length
  • 25Mk NETD
SPECIFICATIONS
Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 400×300@12μm
NETD 25mK
Frame rate 50Hz
Lens
Objective lens 25mm, F1.0
Field of view 11°×8.2°
FOV m@100m 19×14
Magnification 1.9x~7.6x
Detection range 1300m/1400yd
Focus Manual
Display
Display type 0.32'' AMOLED 800×600
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 25mm; Diopter: -5 to +5; Zoom: 14x
Hardware
WIFI 2.4G, 5G
Interface USB Type-C, Support charging
Others Microphone, Bluetooth
System
Recording function Photo/Video (Audio recording included)
Memory capacity 16GB
Power
Battery type Built-in battery
Operating time 5 hours (Support 20W quick charging)
Environmental
Operating temp. -20°C to 50°C / -4°F to +122°F
Encapsulation IP67

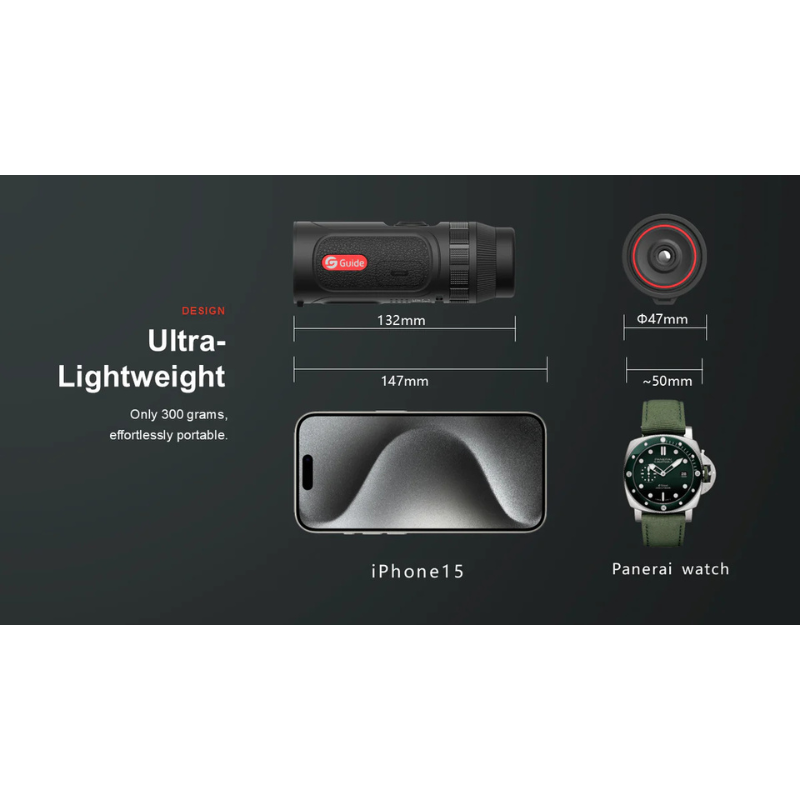

Physical
Weight (g/oz) 295/11.11
Size (mm/in) 47×47×155/1.85×1.85×6.10
Standard Device, Lens cover, Eye mask, Wrist strap, Quick charging adapter, USB Type-C cable, Quick use guide, Safety Information Manual, Warranty card
Optional Bluetooth remote control
Product Features
Sensor Resolution / Sensor Pixel Size: 400×300 @12μm
NETD Thermal Sensitivity: 25mK
Sensor Frame rate: 50Hz
Objective Lens: 25mm, F1.0
Field Of View: 11°×8.2°
Magnification: 1.9x~7.6x
Detection Range: 1400yd
Battery Life: 6 Hours (Built-in Battery)
General
Objective Lens
25mm
10mm
10mm
Base Magnification
1.9x
1.2x
1.2x
Sensor Resolution
400x300
256x192
256x192
Detection Range
1400 yd
550 yd
550 yd
Laser Rangefinder
No
Digital Zoom
4x
4x
4x
Display Type
0.32'' AMOLED 800×600
0.32'' AMOLED 800×600
Touch screen, 1.43'' AMOLED 466×466
Weight
10.4 Oz
8.04 Oz
7.23 Oz
