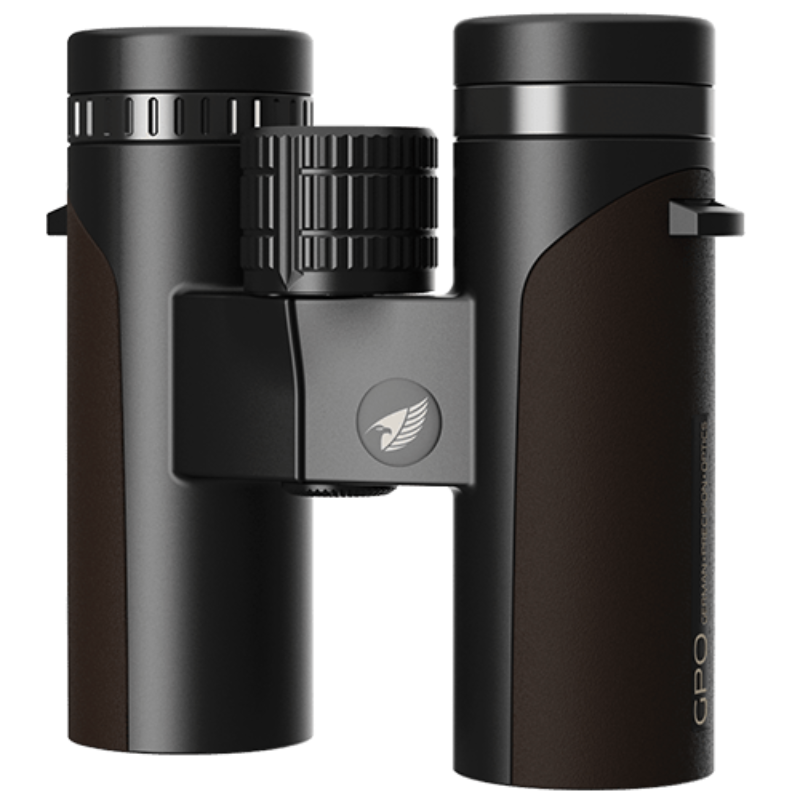

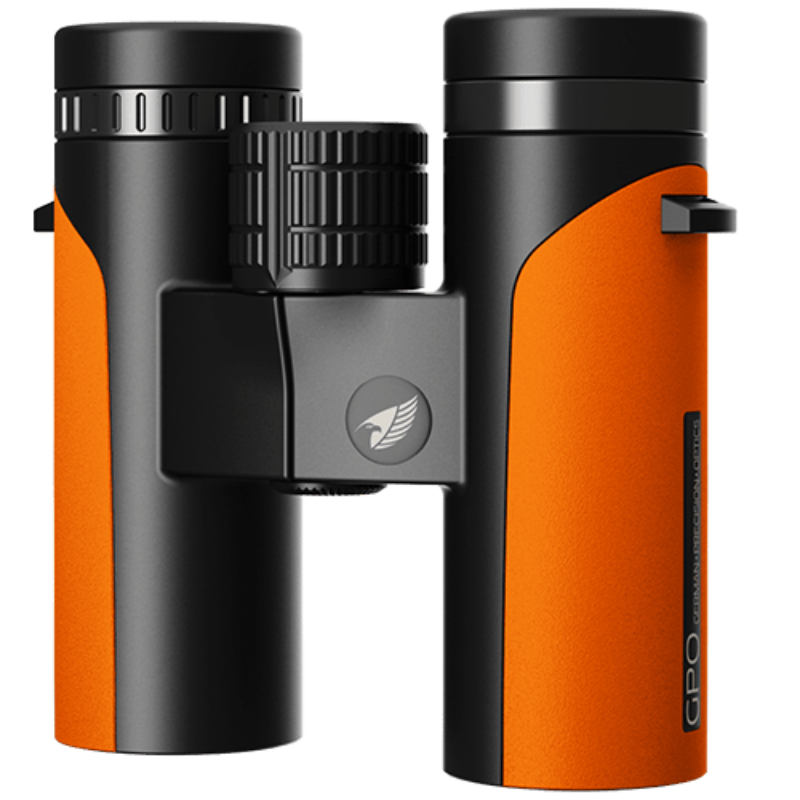

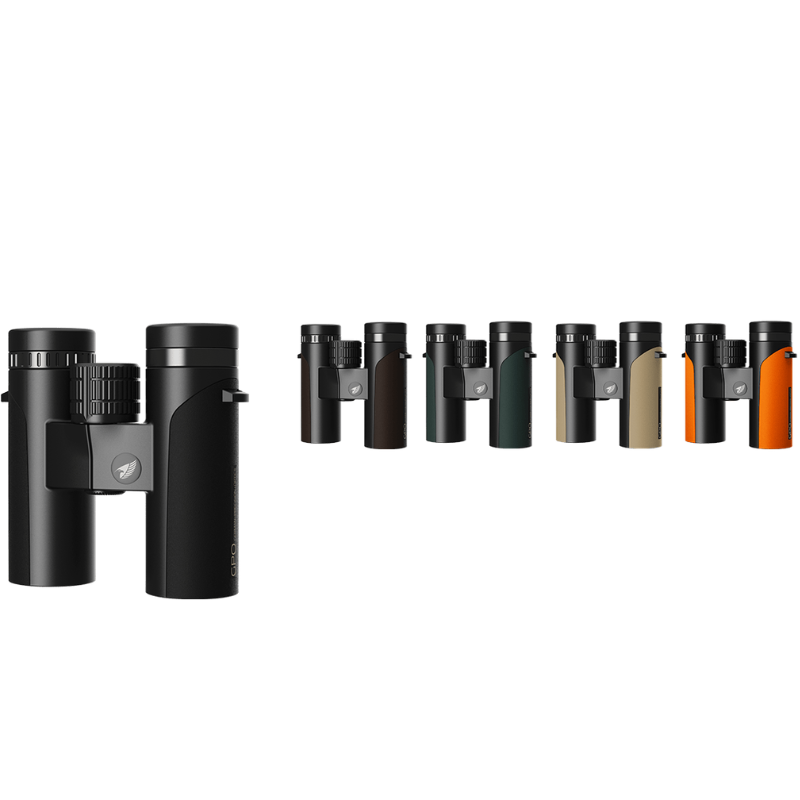

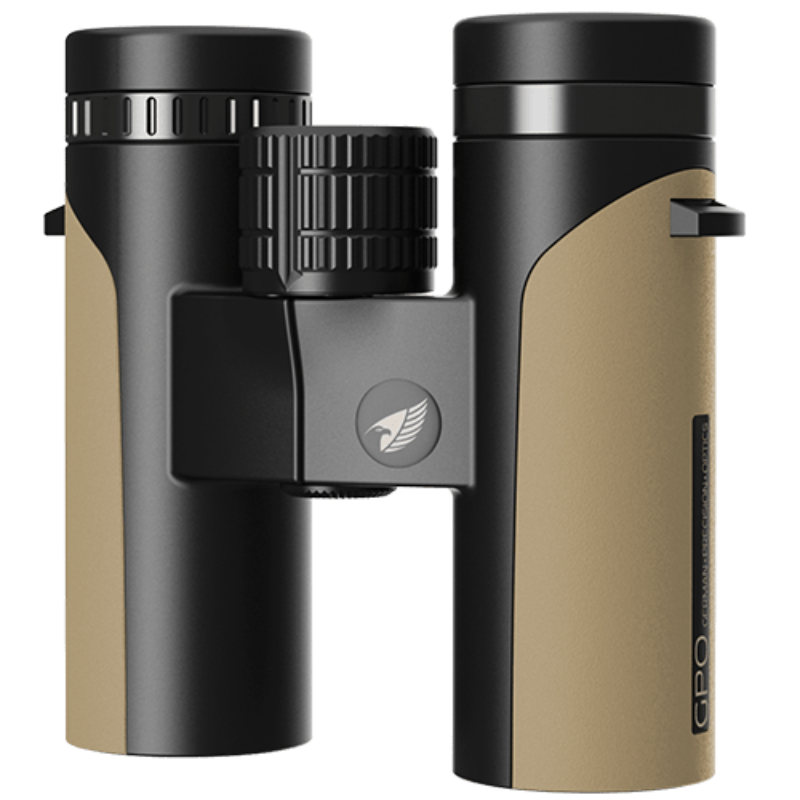

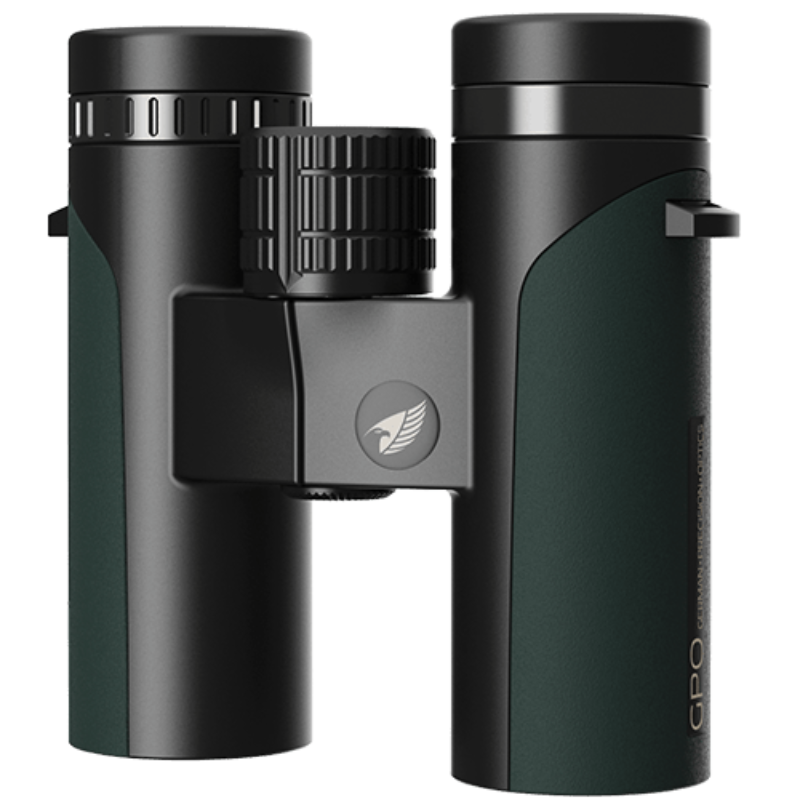

GPO | PASSION™ ED 10×32
GPO | PASSION™ ED 10×32
- Regular price
- Price: $549.99
- Regular price
- List Price: $619.99
- Sale price
- Price: $549.99
- Unit price
- per
Couldn't load pickup availability
PRODUCT DESCRIPTION
Description
PASSION™ ED 8x/10x 32mm binoculars are our most compact and lightweight binoculars and offer the perfect entry into the world of high quality observation optics at an unbeatable price-performance ratio. The slim and ergonomic design has been combined with the use of high-quality materials. The entire housing is made of magnesium. Thanks to ED lenses, multi-coatings and matched optics, they offer a wide field of view, high edge-to-edge sharpness and transmission values, as well as a shorter close focus. Their robustness and optical performance make them unique performers in their class. You will not find a comparably equipped binocular in this price range.
Technical Specification
| Prism type | . | Schmidt-Pechan |
| Magnification | . | 10x |
| Field of view (FOV) at 1.000y | . | 316 |
| Field of view (FOV) at 1.000m | . | 104 |
| Objective diameter (mm) | Effective diameter | 32 |
| Ocular diameter (mm) | Effective diameter | 18 |
| Exit pupil diameter (mm) | Measurement of the pupilary ocular beam | 3,28 |
| Eye Relief (inches) | From the last optical surface | 0,59 |
| Eye Relief (mm) | From the last optical surface | 15 |
| Housing | Main body and hinge | magnesium |
| Close focus (feet) | Shortest focal distance | 7,2 |
| Close focus (meters) | Shortest focal distance | 2,2 |
| Inter pupilary distance (IPD) | Center pupil to center pupil measurement | 56 – 73 |
| Dioptric compensation range | . | -2,5/+2,5 |
| Waterproof | Mbars | 100 |
| Transmission Daylight | ISO 14490-5:2005 | 90% |
| Height (inches) | Without covers | 1,7 |
| Height (mm) | Without covers | 44 |
| Weight (ounces) | Without covers | 17,6 |
| Weight (grams) | Without covers | 500 |
| Length (inches) | At outside diameter | 4,6 |
| Length (mm) | At outside diameter | 118 |
| Width (inches) | Fully extended | 4,6 |
| Width (mm) | Fully extended | 118 |
| Accessories included with the purchase | . | instruction manual, cleaning cloth, hard case, neoprene neck strap, hard case strap, objective covers, ocular covers |
Features
- ED glass technology
- Magnesium micro-bridge and body
- Fully multicoated
- Dielectric and phase correction coatings
- GPO bright lens coating technology
- Waterproof and fog proof
- Lightweight and compact
- Custom-molded hard case
Specification
ED line - For demanding users and design lovers
PASSION™ ED binoculars offer the perfect introduction to the world of high-quality observation optics at an unbeatable price-performance ratio. The slim and ergonomic design has been combined with the use of high-quality materials. The entire housing is made of magnesium. Thanks to ED lenses, multi-coatings and adapted optics, they offer a large field of view, high edge sharpness and transmission values as well as shortened close focusing. Their robustness and optical performance make them unique performers in their class.
Instruction Manual
PASSION ED Instruction Manual - CLICK HERE
